How Much Ceiling Height Do You Need for a 2 Post Car Lift? Complete Garage Space Guide
A 2-post lift is often a good choice for automotive repair because it provides excellent undercarriage access while using a relatively compact floor footprint.
However, vertical clearance is critical.
The required ceiling height depends on:
● Lift maximum height
● Vehicle height
● Desired working position
● Roof-mounted accessories
● Garage door configuration
📌 Example Reference: Auto-Hydra's 2-post models feature maximum lifting heights around 74.8 inches and overall heights around 111.2 inches — illustrating why you need to evaluate both lift dimensions and vehicle height together.
1. How Much Ceiling Height Do You Need for a 2 Post Car Lift?
A 2-post lift provides excellent undercarriage access with a compact floor footprint. However, vertical clearance is the critical factor.
Required ceiling height depends on:
● Lift maximum height
● Vehicle height
● Desired working position
● Roof-mounted accessories
● Garage door configuration
⚠️ Important: A lift that "fits" but doesn't allow you to stand under the vehicle at full height may defeat the purpose of the investment. Always calculate your required working height before purchasing.
2. How Much Space Do You Need for a 4 Post Car Lift?
4-post lifts typically require more floor length than 2-post lifts because the vehicle drives onto runways.
They are particularly useful for:
● Vehicle storage
● Long-term parking
● General maintenance
● Home garages
● Vehicle collectors
The space requirement depends heavily on the runway length and vehicle dimensions.
💡 Pro Tip: If your primary goal is vehicle storage, a 4-post lift can make excellent use of vertical garage space.

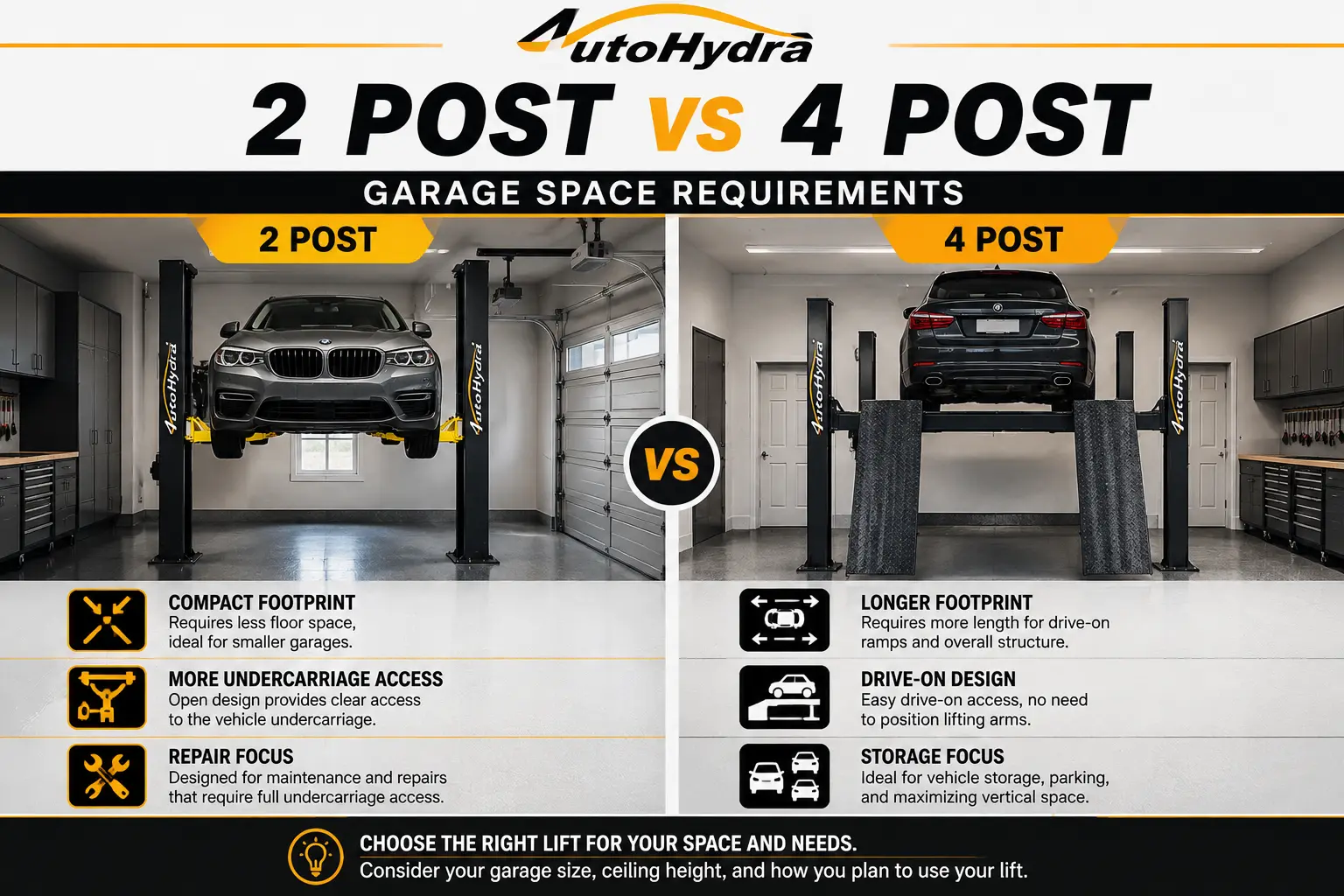

3. 2 Post vs 4 Post: Which Is Better for a Small Garage?
For a small garage, the decision is not simply about which lift is smaller. It depends on what you want to do.
📖 Learn more: 2 Post vs 4 Post Car Lift: Which Is Better?
4. How to Measure Your Garage for a Car Lift
Before purchasing a lift, use the following measurement process.
(1). Measure Ceiling Height
Measure from concrete floor to the lowest overhead obstruction. Record: Min ceiling height = ____ ft
(2). Measure Garage Width
Measure usable width. Identify walls, cabinets, shelving, electrical equipment, and other permanent obstacles.
(3). Measure Garage Length
Measure from garage door to rear wall. Account for vehicle length, lift length, front clearance, and rear clearance.
(4). Measure Your Vehicle
Record: overall height, overall length, width, wheelbase, and vehicle weight. Don't measure only your current vehicle if you expect to service others.
5. Don't Forget Floor Requirements
Garage space isn't only about dimensions. The concrete floor is also an important part of lift installation.
⚠️ Important: Auto-Hydra's 2-post product information specifies a minimum concrete strength requirement for certain models. Always check against the exact lift manufacturer's installation requirements before purchase.
You should verify:
● Concrete thickness
● Concrete strength
● Floor condition
● Cracks or damage
● Levelness
● Anchor requirements
⛔ Never assume that an existing garage floor is automatically suitable for a vehicle lift.
📖 For installation details: How to Install a Car Lift: Step-by-Step Guide
6. What About a Low-Ceiling Garage?
If your garage has limited ceiling height, a full-height 2-post or 4-post lift may not be the best solution.
Alternative options can include:
● Low-rise lifts
● Mid-rise scissor lifts
● Portable lifting systems
💡 The important point: Match the lift design to the actual limitations of your garage, rather than trying to force a full-height lift into an unsuitable space.
7. Can You Put a Car Lift in a Two-Car Garage?
Yes, in many cases.
A two-car garage can potentially accommodate:
●One full-size lift
●Two smaller lifting areas
●A lift plus workbench/storage
●A 4-post storage lift
However, the actual layout depends on:
●Garage width
●Garage depth
●Vehicle size
●Lift dimensions
●Door position
●Permanent obstacles

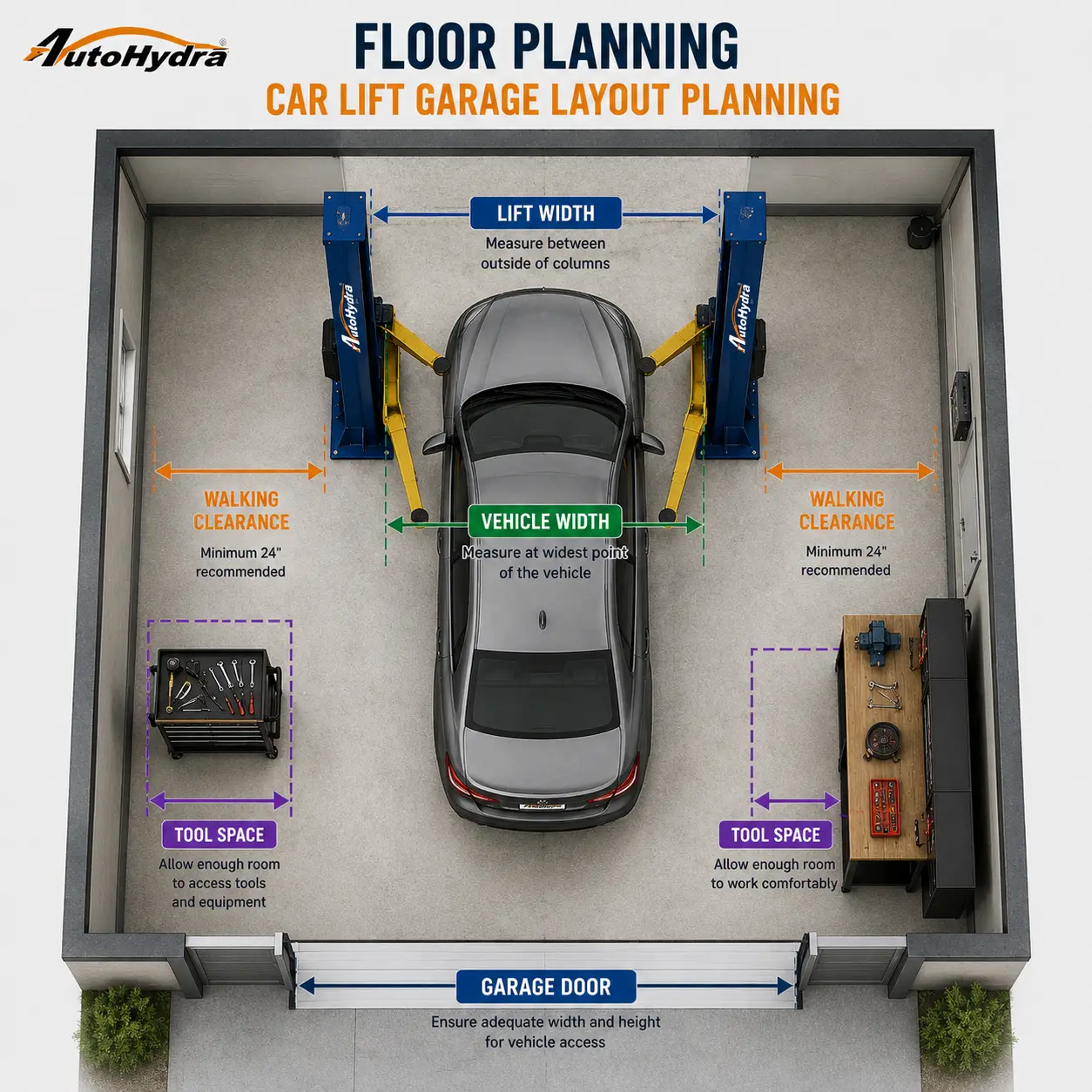

📐 Pro Tip: Creating a layout before purchasing the lift can prevent expensive installation problems later.
8. How Much Space Do You Need Around a Car Lift?
The lift itself is not the only thing occupying your garage. You also need working space around the vehicle.
Allow room for:
●Opening vehicle doors
●Walking around the vehicle
●Moving tools
●Operating lift controls
●Positioning equipment
●Performing repairs
⚠️ Important: A lift that technically fits but leaves no working space may reduce rather than improve garage productivity.
9. How to Choose the Right Car Lift for Your Garage
Once you know your garage dimensions, compare the lift specifications.
Focus on:
- Maximum Lift Height — Does it provide enough working height?
- Overall Lift Height — Will the columns or structure fit below the ceiling?
- Overall Width — Will there be enough room around the vehicle?
- Overall Length — Especially important for 4-post lifts.
- Vehicle Capacity — The lift must safely support the vehicles you plan to service. Car Lift Capacity Guide →
- Installation Requirements — Confirm concrete specifications, anchoring requirements, electrical requirements, and assembly space.

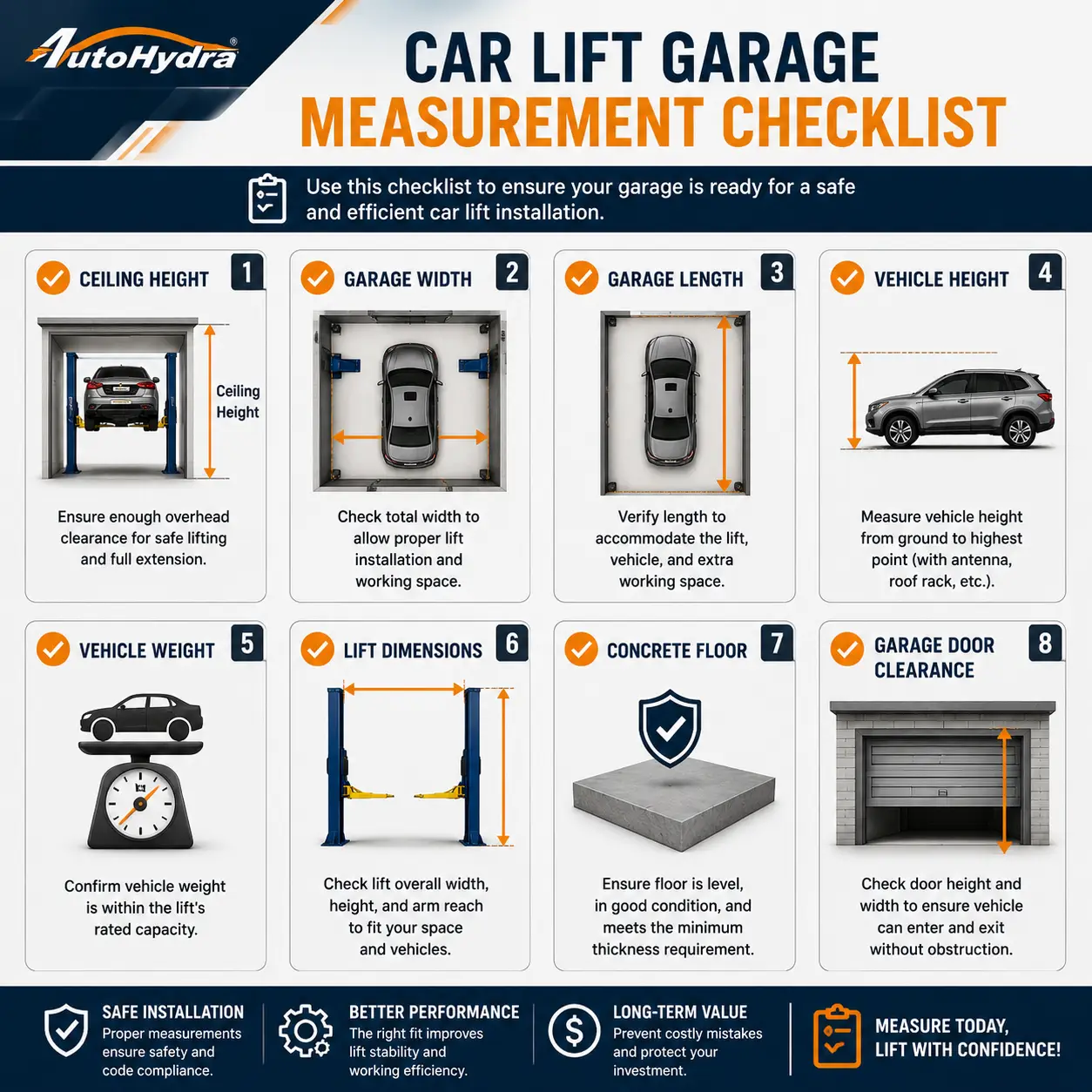

Garage Space Checklist Before Buying a Car Lift
Use this checklist before placing your order:
Frequently Asked Questions
What is the minimum garage size for a car lift?
There is no universal minimum garage size because requirements vary by lift design, vehicle size, and manufacturer specifications. Always compare your garage's usable dimensions with the lift's overall dimensions and required clearances.
How high should my garage ceiling be for a car lift?
The required ceiling height depends on the lift's maximum height and the height of the vehicle being lifted. Always account for the lowest ceiling obstruction, garage door hardware, and the desired working height.
Can I install a 2-post lift in a small garage?
A 2-post lift can be a space-efficient option because it generally requires less floor length than a 4-post lift. However, you still need sufficient width, ceiling clearance, and floor strength.
Can a 4-post lift fit in a standard garage?
Many 4-post lifts can be used in residential garages, but the exact fit depends on garage length, width, ceiling height, vehicle dimensions, and the specific lift model.
Can I install a car lift in my home garage?
Yes, many lifts are designed for home garages. However, you must verify the garage's ceiling height, floor specifications, available space, electrical requirements, and local installation requirements before purchasing.
