How to Choose a Pallet Stretch Wrapping Machine: A Complete Buying Guide
Wrapping pallets by hand can become slow, inconsistent, and physically demanding as shipping volume increases. A pallet stretch wrapping machine can automate the wrapping process, create more consistent loads, and make pallet preparation easier for warehouses, distribution centers, manufacturers, retailers, and logistics operations.
This guide explains the most important factors to consider before choosing an automatic pallet wrapping machine and compares three practical configurations.
What Is a Pallet Stretch Wrapping Machine?
A pallet stretch wrapping machine is designed to wrap stretch film around palletized goods automatically or semi-automatically.
Instead of an operator repeatedly walking around a pallet while holding a roll of stretch film, the machine rotates the load or wrapping mechanism while applying stretch film around the pallet.
Depending on the machine design, an automatic pallet wrapping machine can help with:
- Consistent film application
- Faster pallet preparation
- More uniform load wrapping
- Reduced manual handling
- Improved load stability
- More efficient warehouse workflows
For operations that prepare multiple pallets every day, moving from manual wrapping to a dedicated stretch wrapping machine can be an important workflow improvement.
Why Use an Automatic Pallet Wrapping Machine?
Manual pallet wrapping may work well for occasional shipments. However, it can become inefficient when pallet volume increases.
An automatic pallet wrapper can help standardize the wrapping process.
More Consistent Wrapping
Manual wrapping can vary from one operator to another. Machine-assisted wrapping provides a more repeatable process.
Reduced Manual Handling
Operators do not need to continuously walk around the pallet while holding and stretching film.
Better Workflow Efficiency
A dedicated pallet wrapping station can make pallet preparation easier to organize, especially in shipping and receiving areas.
More Professional Load Preparation
Consistent wrapping can help keep cartons and products together during movement and transportation.
💡 The actual productivity improvement depends on pallet size, wrapping pattern, film settings, operator workflow, and the specific machine configuration.
How Do You Choose the Right Machine?
Before choosing a machine, start with the application rather than the machine itself.
Ask these seven questions:
- How heavy are your typical pallet loads?
- What are the dimensions of your pallets?
- How will pallets be loaded onto the machine?
- How much floor space is available?
- What electrical supply is available?
- Do you need to weigh pallets during the wrapping process?
- How many pallets do you wrap per day?
Your answers will help determine which machine configuration makes the most sense.
1. Check the Maximum Pallet Load Weight
Load weight is one of the first specifications to check.
A pallet wrapping machine should be selected based on the actual maximum load you need to process rather than the average pallet weight.
For example, Auto-Hydra offers 4,400-lb pallet stretch wrapping machine configurations for applications that require substantial load capacity.
When evaluating a machine, consider:
- Typical pallet weight
- Maximum pallet weight
- Product distribution
- Pallet stability
- Load dimensions
- Frequency of use
⚠️ Do not select equipment based only on the weight of your most common pallet. If occasional heavier loads are part of your workflow, the maximum required load should also be considered.
2. Consider Your Pallet and Load Dimensions
Pallet size affects whether a load can be positioned correctly on the machine. The turntable needs to provide adequate support and clearance for the pallet and its load.
Before buying, measure:
- Pallet length
- Pallet width
- Overall load height
- Load overhang
- Maximum load diameter
- Clearance around the machine
A machine that works well for standard pallets may not be the best fit for unusually large or irregular loads.
Why Turntable Size Matters
The turntable is the platform on which the pallet is positioned. A larger turntable can provide additional space for larger pallet configurations, but it also requires more floor space.
One Auto-Hydra configuration features a 65-inch turntable, providing a clearly defined platform size for businesses that need to evaluate pallet dimensions before purchasing.
👉 Explore the 4,400-lb pallet stretch wrapping machine with 65-inch turntable
3. Do You Need a Loading Ramp?
Loading method is an important consideration when choosing a pallet wrapping machine.
If pallets are moved with a pallet jack or another ground-level handling method, a ramp can simplify loading and unloading.
A loading ramp can reduce the need to manually position a pallet onto the turntable and can make the wrapping station easier to integrate into a warehouse workflow.
Auto-Hydra offers a 4,400-lb stretch wrapper configuration with a loading ramp, with the listed ramp dimensions of 55.1 × 59.1 × 3.1 inches and a 2-ton loading ramp configuration.
👉 View the 4,400-lb Stretch Wrapper Machine with Ramp
When Is a Ramp Useful?
A ramp may be especially useful when:
- Pallets are loaded from floor level
- A pallet jack is used
- The machine is positioned in a shipping area
- Operators need easier loading access
- The warehouse does not have a dedicated lifting system at the wrapping station
The ramp configuration should always be checked against your pallet jack, pallet dimensions, available floor space, and loading workflow.
4. Do You Need a Built-In Scale?
For some warehouses, wrapping and weighing are separate processes. A pallet may first be wrapped and then moved to a floor scale or shipping scale.
If weighing is already part of your shipping workflow, a wrapping machine with a built-in scale can potentially combine two steps into one workstation.
Auto-Hydra offers a 110V 4,400-lb automatic pallet wrapping machine with a built-in scale and 65-inch diameter turntable.
👉 Explore the 4,400-lb Automatic Pallet Wrapping Machine with Built-In Scale
This configuration may be worth considering for operations where pallet weighing is an important part of the shipping or inventory process.
When Does a Built-In Scale Make Sense?
A built-in scale may be useful when your workflow requires:
- Pallet weighing
- Shipping weight verification
- Inventory weight records
- Freight preparation
- Fewer separate handling steps
If weighing is not part of your workflow, a standard wrapping configuration may be simpler.
5. Check Your Available Electrical Supply
Electrical compatibility should be checked before purchasing a pallet wrapping machine. The available power supply can vary between warehouses, workshops, retail locations, and distribution centers.
The third Auto-Hydra configuration is specifically listed as a 110V automatic pallet wrapping machine, which can be relevant for facilities where a compatible 110V power supply is available.
👉 View the 110V 4,400-lb Pallet Wrapping Machine with Built-In Scale
⚠️ Before installation, confirm the actual electrical requirements for the selected model and make sure the facility's power supply is compatible.

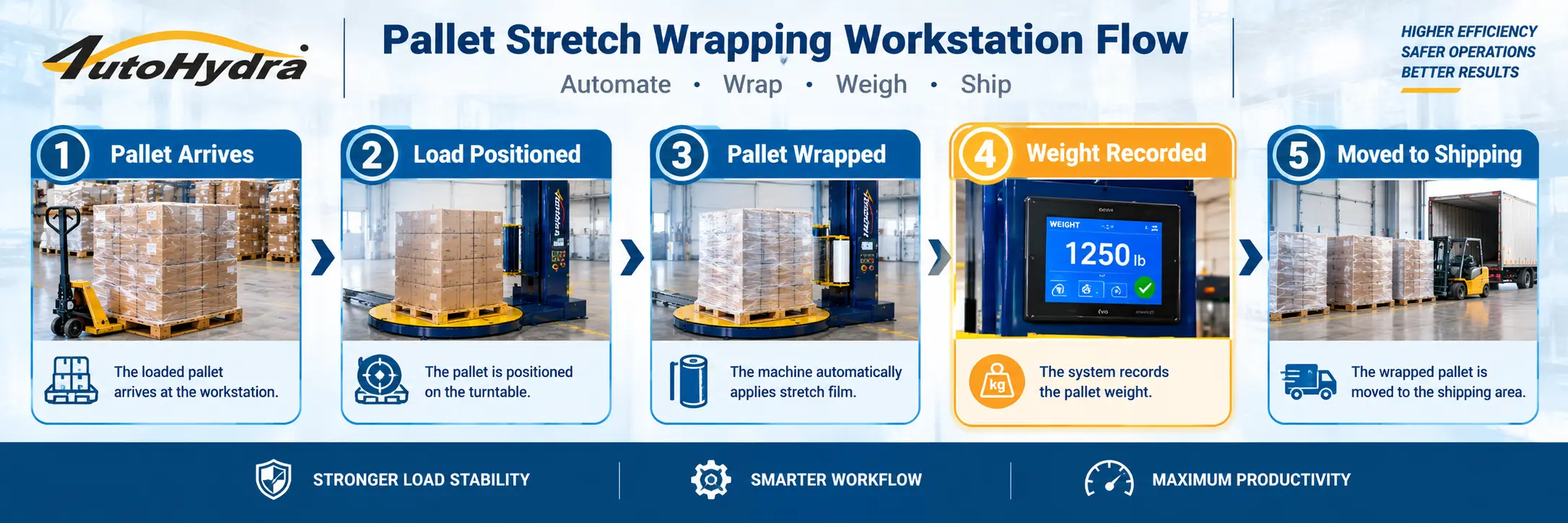

6. Think About Your Daily Wrapping Workflow
The best pallet stretch wrapping machine is not necessarily the one with the most features. It should fit the way your warehouse actually operates.
Consider the complete workflow:
- If weighing is a separate step, a built-in scale may improve workflow integration.
- If loading is difficult, a ramp may be more important.
- If your pallets are larger, turntable size may become a higher priority.
- If you process many standard pallets, a straightforward automatic wrapper may be sufficient.
The right configuration depends on which part of your current workflow creates the most labor or handling.
7. Compare Pallet Wrapping Machine Configurations
The following comparison can help narrow down the right configuration.
| Feature | 4,400-lb Wrapper with Ramp | 4,400-lb Wrapper with 65" Turntable | 4,400-lb Wrapper with Built-In Scale |
|---|---|---|---|
| Rated load | 4,400 lb | 4,400 lb | 4,400 lb |
| Loading ramp | ✅ Yes | Not highlighted | Not highlighted |
| Turntable | Product-specific | 65" | 65" diameter |
| Built-in scale | Not highlighted | Not highlighted | ✅ Yes |
| Power | Verify product specification | Verify product specification | 110V |
| Main consideration | Easier pallet loading | Standard large turntable configuration | Wrapping + weighing workflow |
| Product | View Product | View Product | View Product |
💡 The goal is not to choose the machine with the longest feature list. Instead, match the configuration to the way your facility handles pallets.

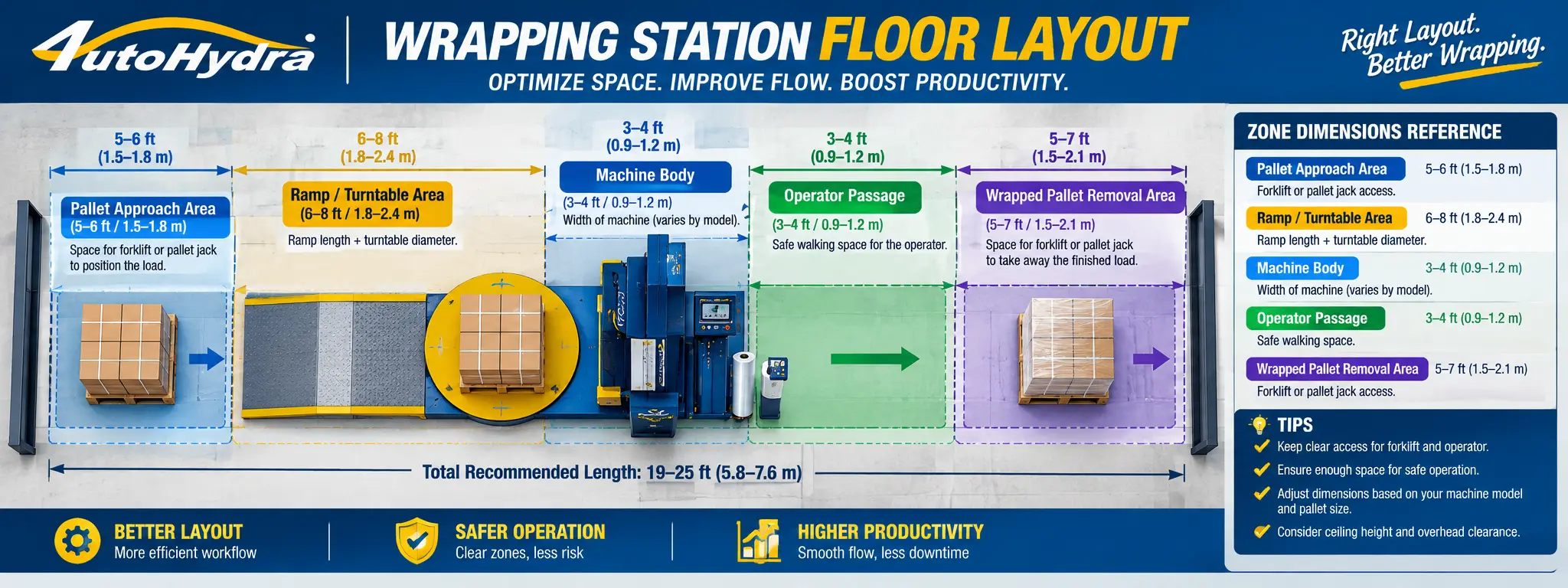

8. Consider Floor Space and Machine Placement
Before purchasing a pallet wrapping machine, measure the available floor area. You need to account for more than the footprint of the machine itself.
A machine with a loading ramp may require additional approach space. A machine with a larger turntable may require additional clearance around the platform.
The wrapping station should be positioned so that operators can move pallets through the area without creating unnecessary bottlenecks.
9. Consider Pallet Jack Compatibility
If pallets are loaded using a pallet jack, the machine's loading configuration becomes especially important.
Before purchase, check:
- Ramp dimensions
- Ramp approach angle
- Pallet jack dimensions
- Pallet dimensions
- Turntable height
- Available approach space
- Maximum pallet weight
The first Auto-Hydra model is particularly relevant for users who want a wrapping machine with an integrated loading ramp.
👉 See the ramp-equipped 4,400-lb stretch wrapper

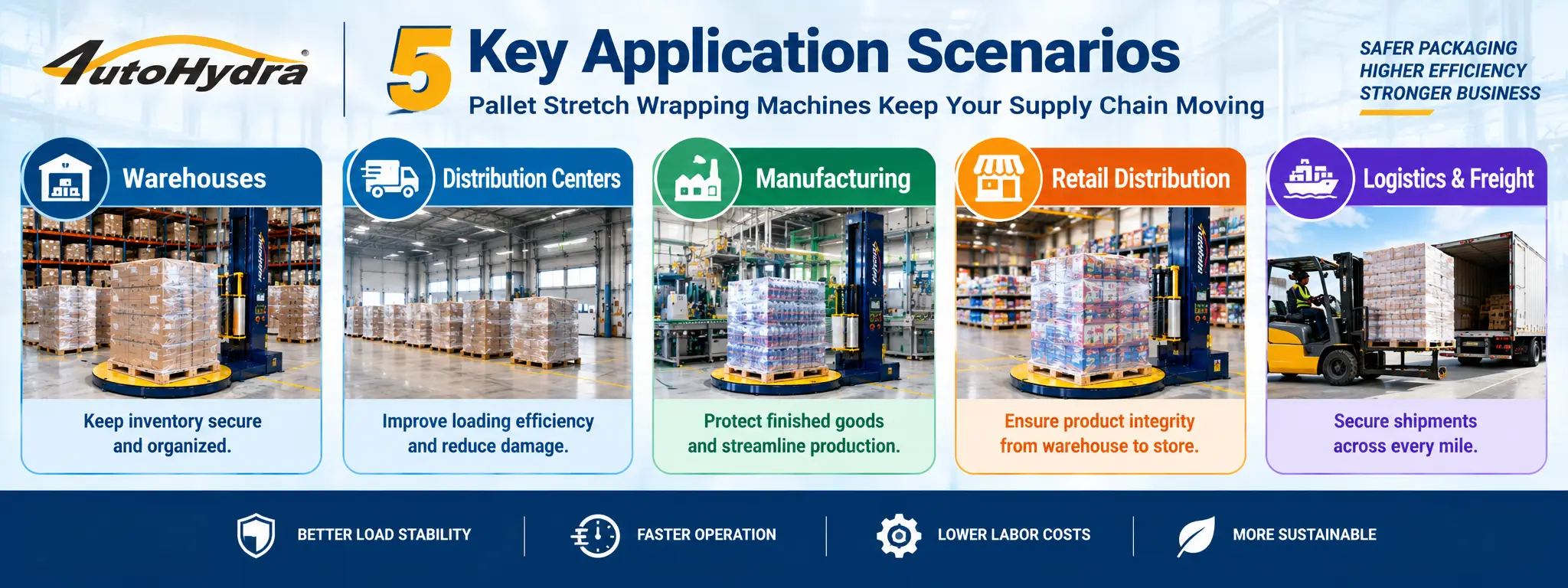

10. What Type of Business Uses Pallet Stretch Wrapping Machines?
Pallet wrapping machines can be useful across a variety of material-handling environments.
💡 The appropriate machine configuration depends on pallet size, weight, workflow, and facility layout.

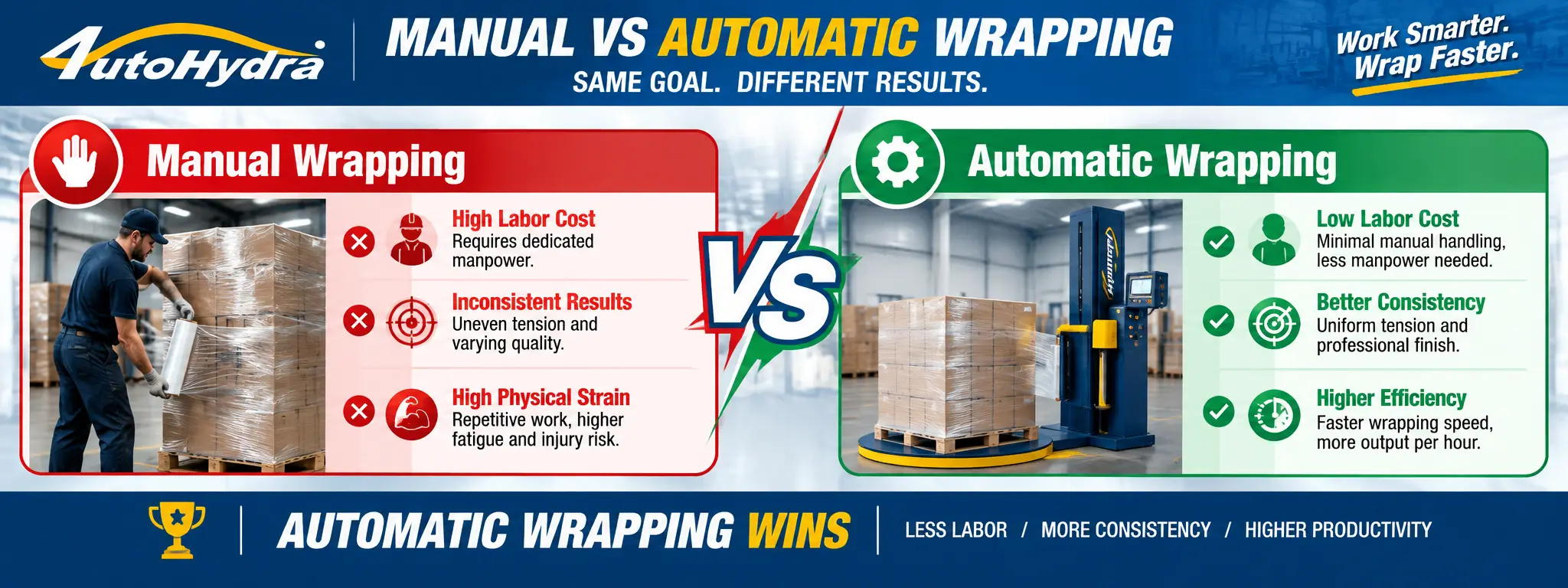

Automatic Pallet Wrapper vs. Manual Stretch Wrapping
Manual wrapping has a relatively low equipment cost, but it requires operators to physically walk around the pallet and control the film. An automatic pallet wrapper changes the process by mechanically controlling the wrapping operation.
- For low-volume operations, manual wrapping may remain practical.
- For repetitive warehouse workflows, an automatic pallet wrapping machine can provide a more structured wrapping process.
How Much Load Capacity Do You Need?
Capacity should be based on the maximum palletized load you expect to process.
A 4,400-lb rated machine provides a substantial load capacity for many warehouse and logistics applications.
However, load capacity alone does not determine whether a machine is suitable.
You should also confirm:
- Pallet dimensions
- Load height
- Turntable dimensions
- Machine footprint
- Loading method
- Electrical requirements
- Weighing requirements
⛔ Never exceed the manufacturer's specified load capacity.
Which 4,400-lb Pallet Wrapping Machine Should You Choose?
The three configurations can be matched to different workflow priorities.
Choose the Ramp Configuration If Loading Is Your Main Concern
The 4400LBS Stretch Wrapper Machine with Ramp is the configuration to consider when easier pallet loading is a priority.
It features a listed 55.1 × 59.1 × 3.1-inch loading ramp and a 2-ton loading ramp configuration.
👉 View the Ramp-Equipped 4,400-lb Stretch Wrapper
Choose the 65" Turntable Configuration If Platform Size Is Your Priority
The 4400LBS Pallet Stretch Wrapping Machine CRJ1650LFQD features a listed 65-inch turntable.
This configuration can be considered when your pallet and load dimensions make a larger turntable an important part of the equipment selection.
👉 View the 65" Turntable Pallet Stretch Wrapping Machine
Choose the Built-In Scale Configuration If Weighing Is Part of Your Workflow
The 110V 4400-lb Automatic Pallet Wrapping Machine CRJ1650LFDC combines pallet wrapping with a built-in scale and a listed 65-inch-diameter turntable.
This configuration is particularly relevant when pallet weight needs to be incorporated into the shipping or warehouse workflow.
👉 View the 110V Pallet Wrapping Machine with Built-In Scale
Pallet Stretch Wrapping Machine Buying Checklist
Before ordering an automatic pallet wrapping machine, verify:
- □ Maximum pallet weight
- □ Typical pallet weight
- □ Pallet length and width
- □ Maximum load height
- □ Turntable size
- □ Loading method
- □ Ramp requirement
- □ Built-in scale requirement
- □ Electrical supply
- □ Available floor space
- □ Operator clearance
- □ Pallet jack compatibility
- □ Film requirements
- □ Machine maintenance access
- □ Delivery and installation requirements
Frequently Asked Questions
What is a pallet stretch wrapping machine used for?
A pallet stretch wrapping machine is used to wrap stretch film around palletized goods automatically or semi-automatically. It helps create more consistent loads, reduce manual handling, improve load stability, and speed up pallet preparation for shipping or storage.
How much does a pallet stretch wrapping machine cost?
The cost depends on rated capacity, turntable size, loading method, whether a built-in scale is included, electrical configuration, and additional features. For a specific quote on a 4,400-lb pallet stretch wrapping machine, contact the Auto-Hydra team with your pallet dimensions, load weight, and workflow requirements.
What load capacity do I need for a pallet wrapping machine?
Capacity should be based on the maximum palletized load you expect to process, not the average. A 4,400-lb rated machine provides substantial capacity for many warehouse and logistics applications, but you should also confirm pallet dimensions, load height, turntable size, and loading method.
Do I need a loading ramp on my pallet wrapping machine?
A loading ramp is useful when pallets are loaded from floor level, when a pallet jack is used, or when the wrapping station is positioned in a shipping area without a dedicated lifting system. It can simplify loading and reduce manual positioning effort.
What is the advantage of a built-in scale on a pallet wrapping machine?
A built-in scale combines wrapping and weighing into a single workstation, reducing separate handling steps. It is useful when pallet weighing is part of your shipping, inventory, or freight preparation workflow.
Can a pallet wrapping machine operate on 110V power?
Yes. Some pallet wrapping machine configurations are specifically designed for 110V power supply, which can be relevant for facilities where only 110V is available. Always verify the electrical requirements of the exact model before purchasing.
What is the difference between manual and automatic pallet wrapping?
Manual wrapping requires an operator to walk around the pallet holding stretch film, resulting in variable consistency and higher physical effort. Automatic pallet wrapping uses a machine to control the wrapping process, providing more repeatable results, less manual handling, and better workflow integration for repetitive operations.
How much floor space does a pallet wrapping machine need?
You need to account for the machine footprint plus space for pallet approach, pallet jack movement, operator access, wrapped pallet removal, film replacement, and routine maintenance. Machines with loading ramps or larger turntables may require additional clearance.
Which 4,400-lb pallet wrapping machine should I choose?
- Choose the Ramp Configuration if easier pallet loading is your main concern.
- Choose the 65" Turntable Configuration if platform size is your priority.
- Choose the Built-In Scale Configuration if weighing is part of your workflow.
Need Help Choosing the Right Pallet Wrapping Machine?
Get a free application assessment from Auto-Hydra's warehouse equipment experts — we'll help you match load capacity, turntable size, loading method, and workflow requirements to the right configuration.
📞 Get Free Assessment | 🛒 Browse Pallet Wrapping Machines
✔️ Free consultation · ✔️ Application-matched recommendations · ✔️ Fast shipping from US warehouses
