Common Car Lift Problems and Solutions: Troubleshooting Guide
A car lift is designed to provide years of reliable service, but like any mechanical equipment, problems can occur over time.
Issues such as slow lifting, uneven movement, hydraulic leaks, or safety lock failures are often caused by improper maintenance, wear, or incorrect operation.
Understanding common car lift problems allows garage owners and technicians to identify issues early, reduce downtime, and maintain safer working conditions.
📘 Related Resources:

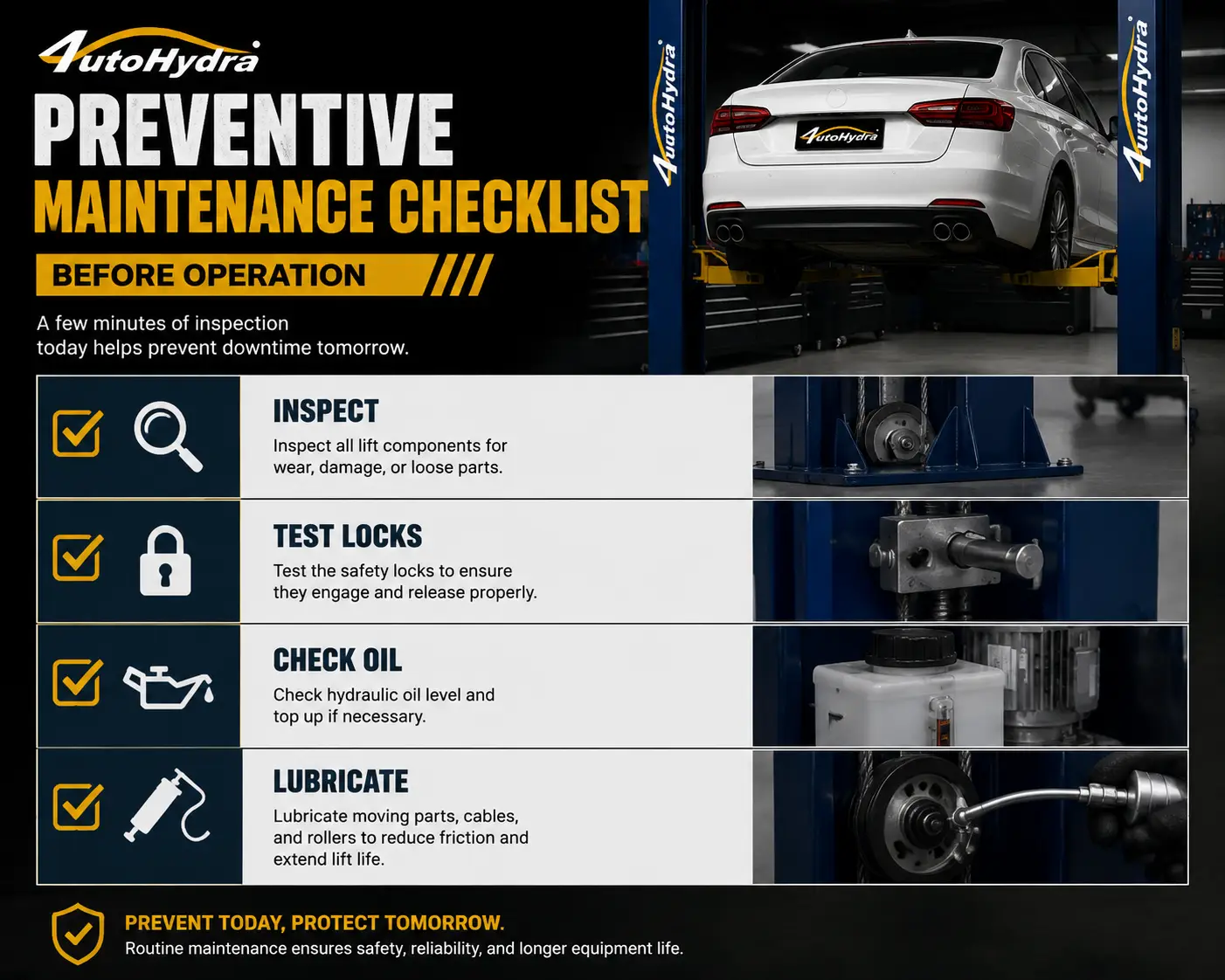

• Car Lift Maintenance Checklist
• How to Install a Car Lift
1. Car Lift Won't Go Up
Possible Causes:
● Low Hydraulic Oil: Motor runs, lift does not rise
● Electrical Problems: Power supply, breaker, motor connection
● Air in Hydraulic System: Reduces lifting pressure
Solution — Low Hydraulic Oil
Check hydraulic fluid level and refill according to manufacturer specifications.
Solution — Electrical Problems
Check:
● Power supply
● Circuit breaker
● Motor connection
● Emergency stop switch
Solution — Air in Hydraulic System
Bleed the hydraulic system to remove trapped air.
📖 Related Guide: How to Bleed a Hydraulic System
2. Car Lift Goes Up Slowly
| Common Cause | Solution |
|---|---|
| Low hydraulic oil | Add fluid |
| Cold hydraulic oil | Allow warming |
| Dirty filter | Clean or replace |
| Weak power supply | Check voltage |
| Worn pump | Inspect pump |
3. Car Lift Is Uneven
Possible Causes:
Cable Imbalance
Check:
● Cable tension
● Equalizer adjustment
Uneven Loading
Vehicle must be positioned correctly. Always follow vehicle lifting points.
📖 Related Guide: Car Lift Capacity Guide
4. Hydraulic Oil Leakage
Symptoms:
● Oil around cylinders
● Slow lowering
● Reduced lifting power
Possible Causes & Solutions:
| Problem | Solution |
|---|---|
| Damaged hose | Replace hose |
| Worn seal | Replace seal |
| Loose fitting | Tighten connection |
⚠️ Address hydraulic leaks immediately. Small leaks can quickly become major failures, leading to unsafe operation and costly repairs.
5. Safety Lock Problems
Safety locks are critical for safe lift operation.
Common Issues:
● Lock does not engage
● Uneven locking
● Release mechanism stuck
Solutions:
● Clean lock ladder
● Check alignment
● Inspect release cable
⛔ Never operate a lift with damaged safety locks. This is a critical safety hazard that can result in serious injury or death.
6. Car Lift Makes Strange Noise
Possible Reasons:
Lack of Lubrication
Lubricate:
● Rollers
● Hinges
● Bushings
Worn Components
Inspect:
● Bearings
● Chains
● Cables

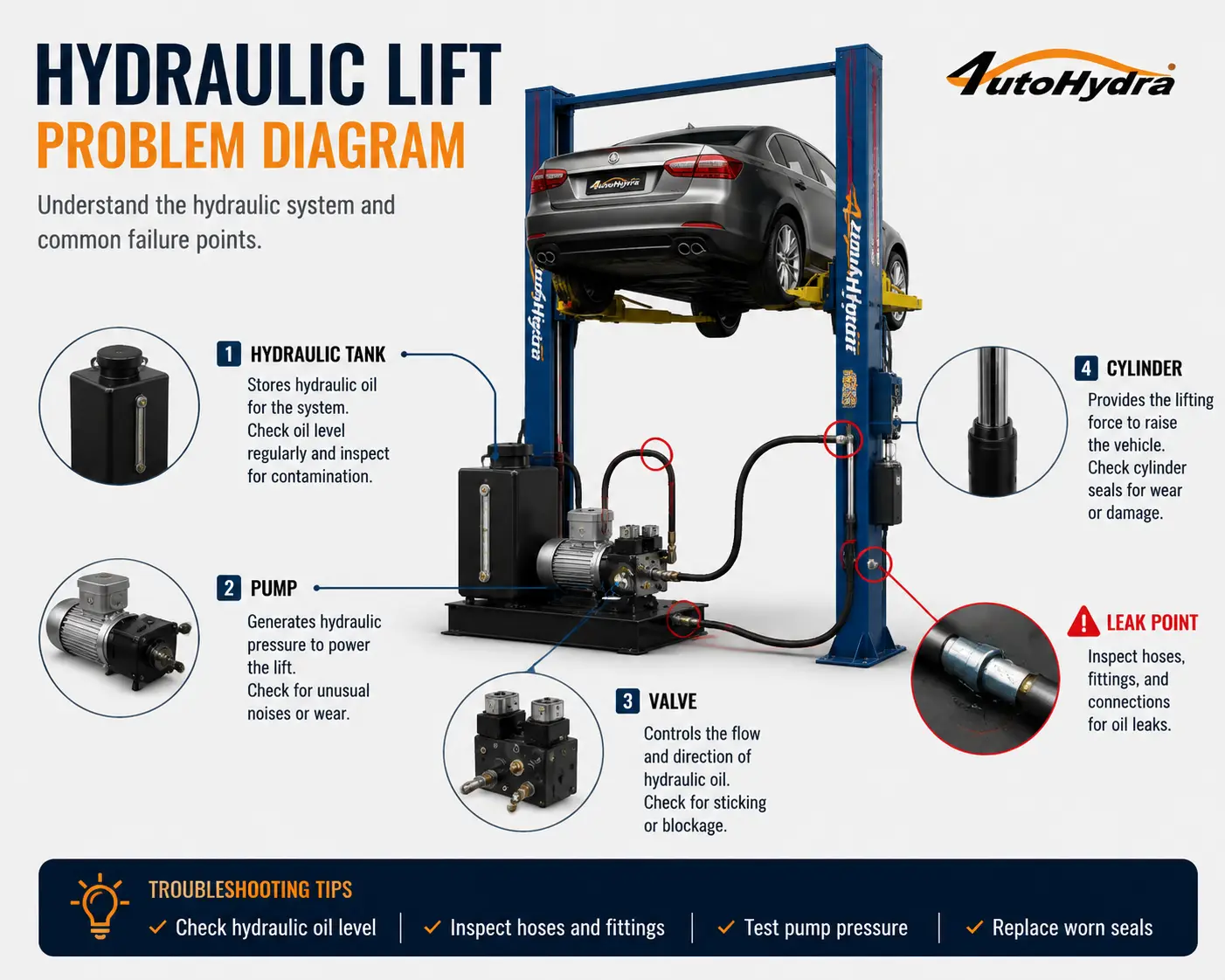

7. Power Unit Problems
Common Symptoms:
Motor Runs But Lift Does Not Move
Possible causes:
● Hydraulic issue
● Pump failure
● Valve problem
Motor Does Not Start
Check:
● Electrical connection
● Voltage
● Switch

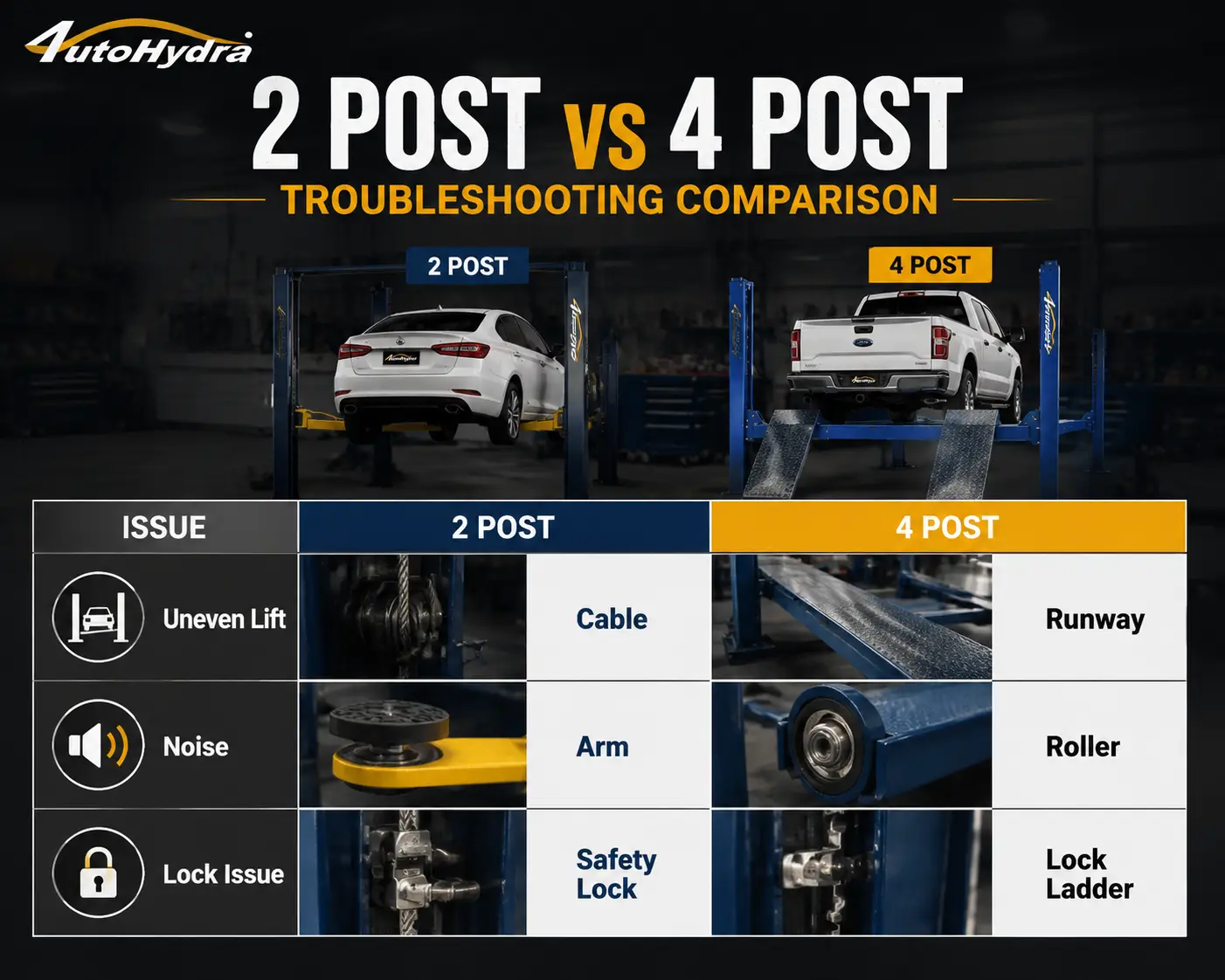

8. Common 2 Post Lift Problems
2 Post lifts typically experience:
Uneven Arm Movement
Cause:
- Cable adjustment
- Hydraulic imbalance
Arm Pad Wear
Solution: Replace worn rubber pads immediately to maintain vehicle stability.
Safety Lock Issues
Inspect lock system regularly.
📖 Related Guide: 2 Post vs 4 Post Car Lift: Which Is Better?
9. Common 4 Post Lift Problems
Cable Adjustment
Symptoms: Uneven runway height
Solution: Adjust cable tension.
Safety Lock Alignment
Check:
- Lock ladder
- Release mechanism
Roller Wear
Lubricate or replace worn rollers.
10. When to Contact Professional Support
⛔ Stop operation immediately if:
● Safety lock fails
● Hydraulic leak is severe
● Structural damage appears
● Lift moves unexpectedly
● Unusual sounds occur
Safety should always come first. When in doubt, do not use the lift and contact a qualified technician.

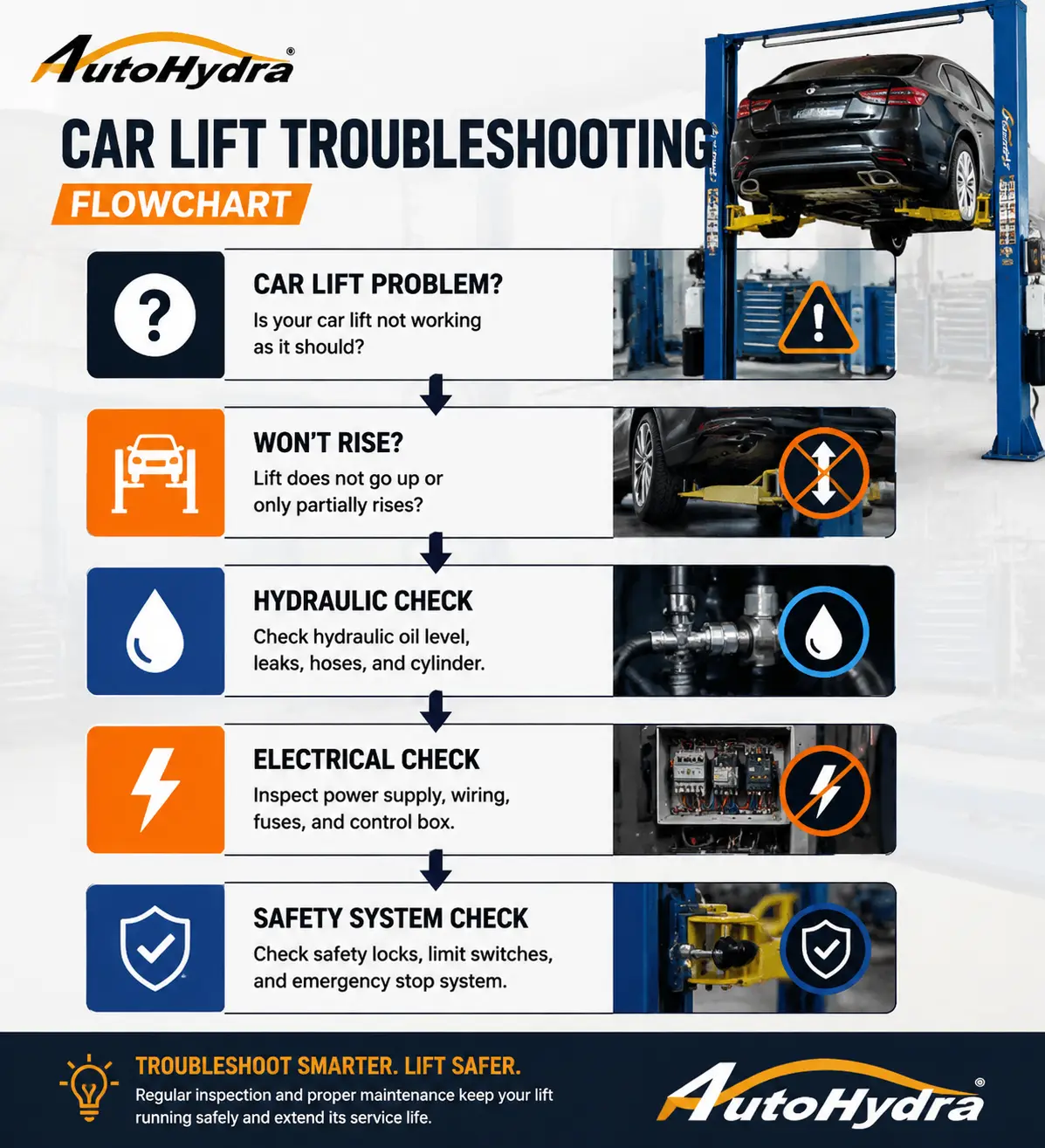

Troubleshooting Checklist
| Problem | Possible Cause | Solution |
|---|---|---|
| Lift won't rise | Low oil | Check fluid |
| Slow lifting | Pump issue | Inspect hydraulic system |
| Uneven lift | Cable imbalance | Adjust cables |
| Oil leak | Seal damage | Replace seal |
| Noise | Lack of lubrication | Lubricate parts |
Frequently Asked Questions
Why won't my car lift go up?
Common causes include low hydraulic oil, electrical problems, air in the hydraulic system, or pump failure. Check fluid level first, then inspect electrical connections and bleed the system if necessary.
Why is my car lift uneven?
Uneven lifting is often caused by cable imbalance, incorrect installation, or uneven vehicle loading. Check cable tension and ensure the vehicle is positioned according to manufacturer lifting points.
How do I fix a leaking hydraulic car lift?
Inspect hoses, fittings, and seals. Replace damaged hydraulic components before continued operation. Do not attempt to operate the lift with an active hydraulic leak.
How often should I troubleshoot my car lift?
Regular inspections should be performed before operation, while detailed troubleshooting and maintenance should follow manufacturer recommendations — typically monthly or quarterly.
Are 2 post lifts harder to maintain?
2 post lifts require more attention to cables, arms, and synchronization systems compared with some 4 post designs. However, both types require regular inspection and maintenance for safe operation.
